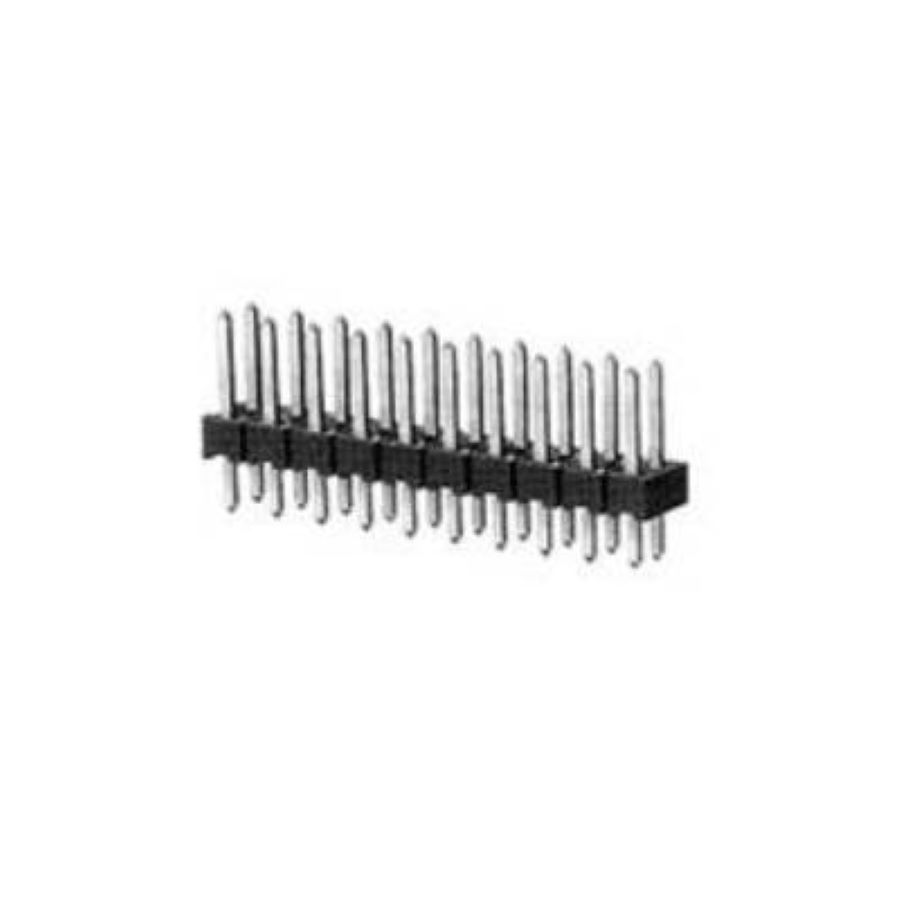

5-146257-6
Manufacturer:
TE Connectivity
Mfr.Part #:
5-146257-6
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:12 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 14.83 mm |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 750 V |
| Depth | 4.88 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Gold |
| Lead Length | 3.048 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Operating Supply Voltage | 30 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 12 |
| ELV | Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Style | Pin |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Keyed | No |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.5748 mm |
| Contact Gender | Male |
| High Temperature Housing | Yes |
| Mating Post Length | 5.842 mm |
| Contact Shape | Square |
| High Speed Serial Data Connector | No |
| Schedule B | 8536694040 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Termination Post Length | 3.05 mm |
Stock: 563
Distributors
pcbx
pcbxUnit Price$1.26444
Ext.Price$1.26444
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.26444 | $1.26444 |
| 10 | $1.20585 | $12.05850 |
| 25 | $1.14997 | $28.74925 |
| 50 | $1.09668 | $54.83400 |
| 100 | $1.04586 | $104.58600 |
| 300 | $0.99740 | $299.22000 |
| 500 | $0.95118 | $475.59000 |
| 1000 | $0.90708 | $907.08000 |
